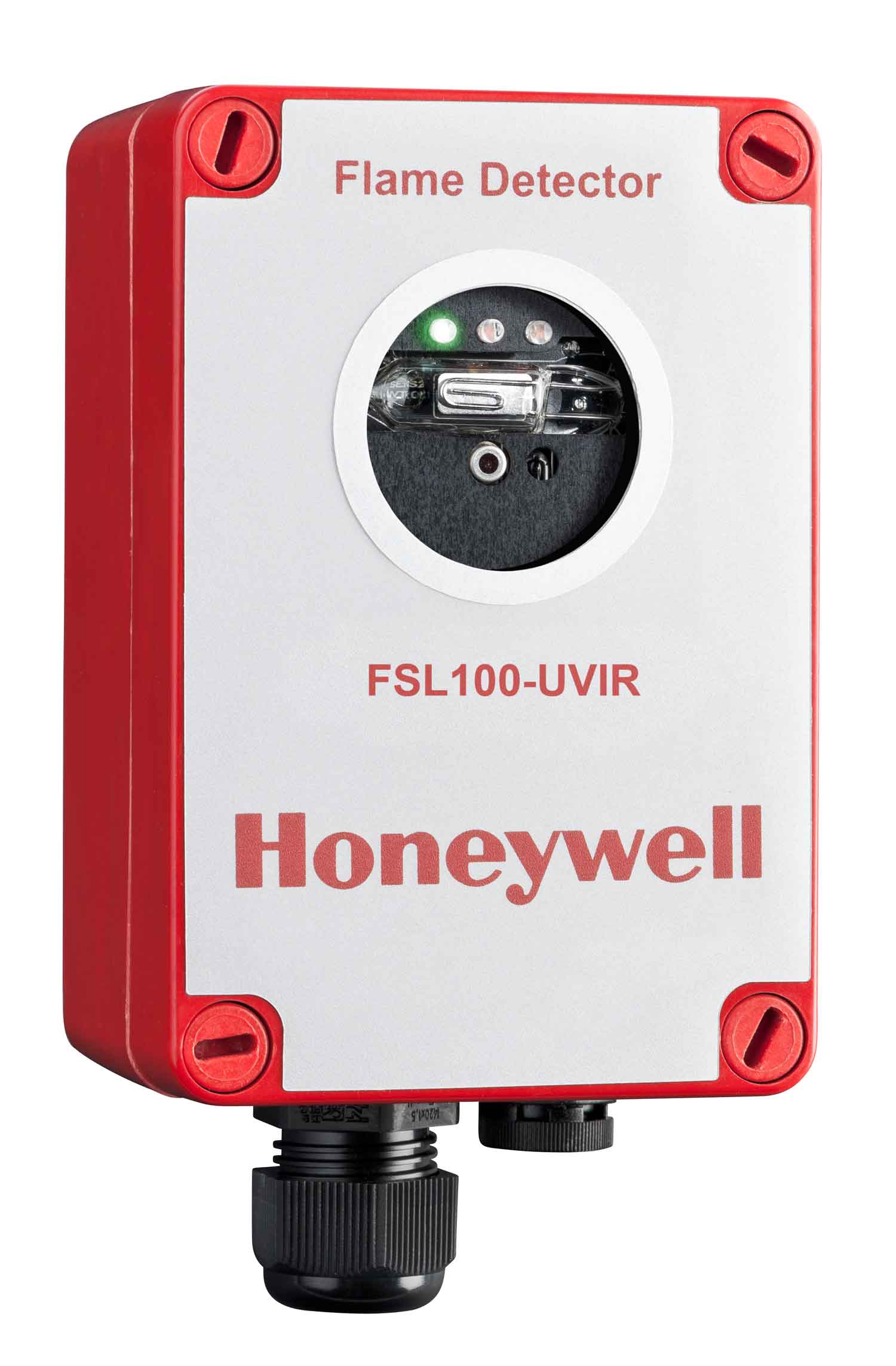

FSL100 Flame Detectors

Honeywell’s FSL100 range of Light Industrial/Commercial Flame Detectors enables simple coverage of fire hazard areas across many fire hazard applications. Installation, set-up and operation are simple. Wide solid area coverage and fast speed of response omtimize safety. With inbuilt automatic test and test lamps available to cover all models, reliability is ensured.
Features & Benefits
  • UV, UV/IR and IR3 Flame Detectors to cover a wide range of applications
  • Robust, simple to install & set-up; Wide angle and fast speed of response
  • Automatic test and test lamps for simple check and maintenance.
Quick Specs
  • FSL100 Flame Detectors - UV, UV/IR and IR3 for light industrial applications
  • GRP Housing, available in Red or White with optional swivel mount
  • 12-14Vdc, 25mA nominal operation
  • 4 to 20mA and Relay outputs.


    • Fire and Gas Consultancy Services
Need Assistance?
USA
Call: 1-800-538-0363
Request A Call
Enter your name and phone number and a Honeywell representative will contact you shortly.
SSL Lock SSL Secure
Don't worry, we won't share your phone and email address. (privacy policy)
Close Window
Product Registration
How to Buy
Additional Information

Product Overview

The newest Optoelectronic flame detector for a wide range of Light Industrial fire detection from Honeywell Analytics.

A range of middle market Optical Flame Detectors joining the HA FSX High End products. Addresses a wide range of fire protection applications both indoors and outdoors. With 3 versions to cover a wide range of flaming fires: Ultraviolet (UV), Ultraviolet/Infrared (UV/IR) and Triple Infrared (IR3).

Detects wide range of Hydrocarbon & Non-Hydrocarbon fires
Detecting a wide range of Hydrocarbon and Non-Hydrocarbon flaming fires means that many application areas can be addressed.

Wide viewing angle
Optical detection of radiant energy in a solid angle Field of View enables coverage of a large risk area. Simple optional mounting bracket allows the FSL100 to be installed and aligned covering the hazard.

Fast response
Far faster than other technologies, by responding to flaming fires in seconds enabling a more rapid response to danger before the fire can escalate.

FM Class1, 2 & 3 Div2
Can be installed indoors or outdoors and in Hazardous areas typically looking into a Div 1 area from a distance.

FM 3260 performance cert
Certified to FM 3260 for flame Detector performance.

Relay and current output (Fault and Alarm)
Analog stepped output and Alarm/Fault relays for simple connectivity.

Inbuilt  Automatic Test and Simple to use Test Lamps
FSL100 maintains continuous internal health monitoring. Test lamps enable simple operational and Field of View testing.


FSL 100 Flame Detectors overview image - Honeywell Analytics

FSL 100 Flame Detectors Swivel Mount - Honeywell Analytics

FSL100 Swivel Mount

FSL100 - SM21

Allows the FSL100 to be installed and aligned covering the hazard.

FSL 100 Flame Detectors Test Lamp - Honeywell Analytics

FSL100 Test Lamp

FSL100 - TL

Covers the total FSL100 range, enabling fast checking of operational capability (included with Universal Charger and Carrying Case).
